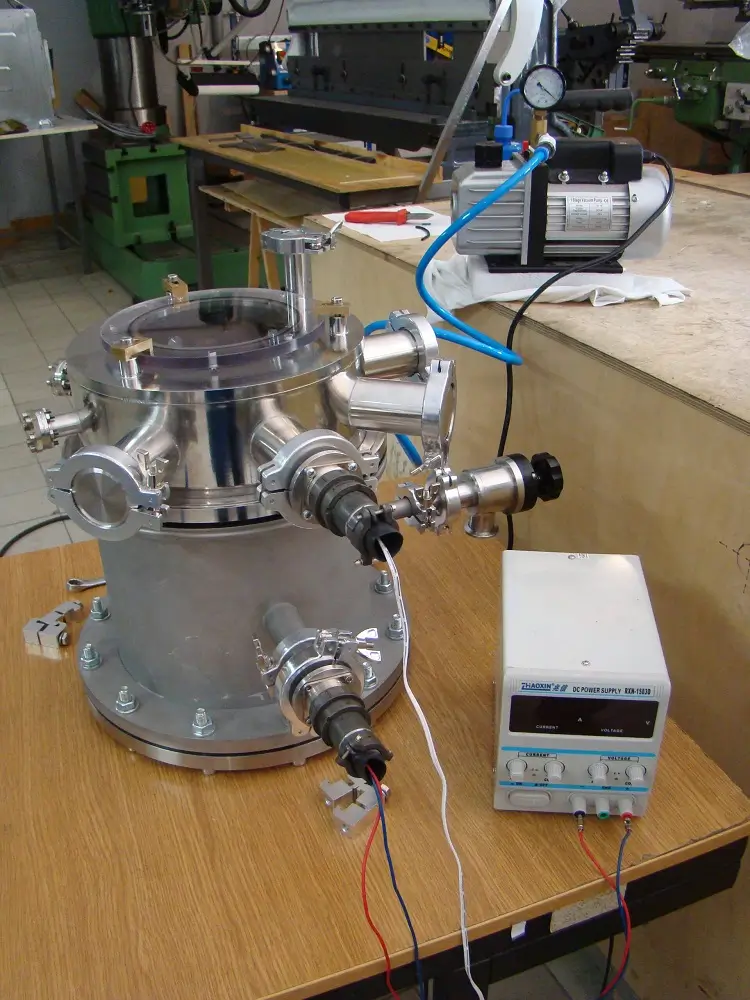

Chamber with Viewport for Sample Testing in Vacuum

Frako-Term presents an innovative vacuum chamber with a viewport, designed for the precise analysis of sample properties under controlled vacuum conditions. This modern design combines advanced technology and exceptional functionality to meet the most demanding research needs of our clients.

Technical Specifications

Dimensions	Diameter 250 mm, Height 350 mm
Material	Stainless steel or aluminum, ensuring excellent durability and corrosion resistance
Sealing Type	Rubber FKM Viton, providing exceptional tightness and long-term performance
Vacuum	Up to 5x10^-2 mbar, enabling research in nearly ideal vacuum conditions

Key Features and Properties

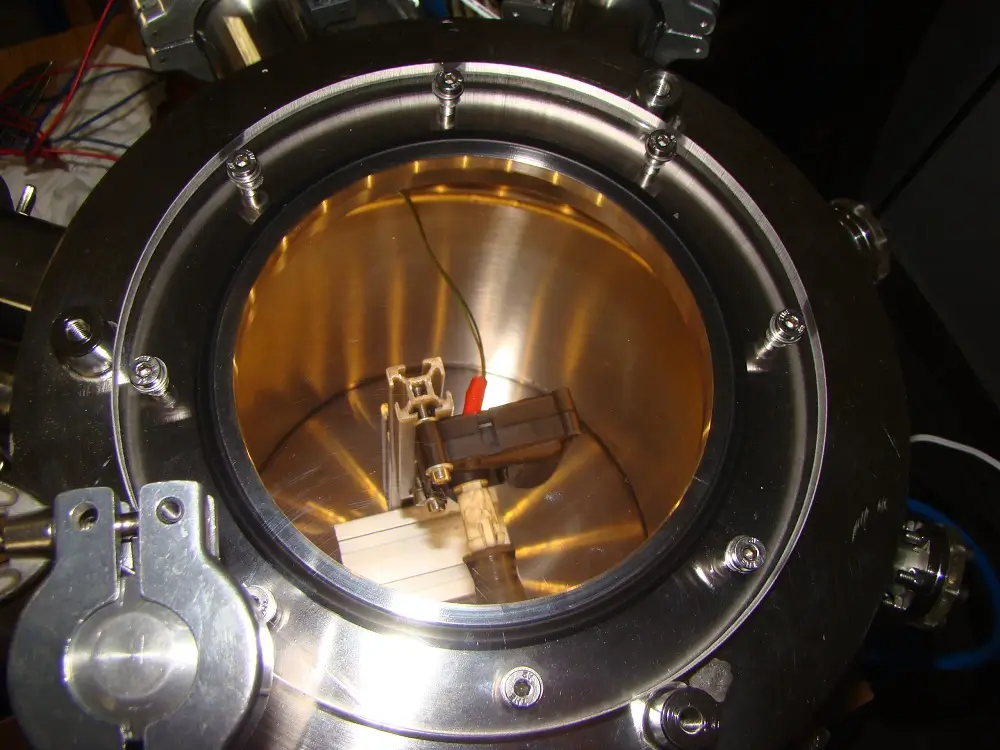

Viewport for Sample Observation: Allows for direct visualization of the research process without disturbing the vacuum conditions.

Sample Positioning Servomechanism: Provides precise positioning and manipulation of the test sample within the chamber.

KF40, KF25, KF16 Vacuum Ports: Offer flexibility in configuring the vacuum system and easy integration with existing installations.

Vacuum Electrical Feedthroughs and Internal Sample Illumination: Enable complex experiments and the observation of samples under optimal conditions.

Application

Our vacuum chamber is designed for a wide spectrum of research applications, particularly for projects requiring detailed analysis and observation of samples in a vacuum. It is ideally suited for research in the fields of nanotechnology, materials science, as well as in the semiconductor and electronics manufacturing industries.
